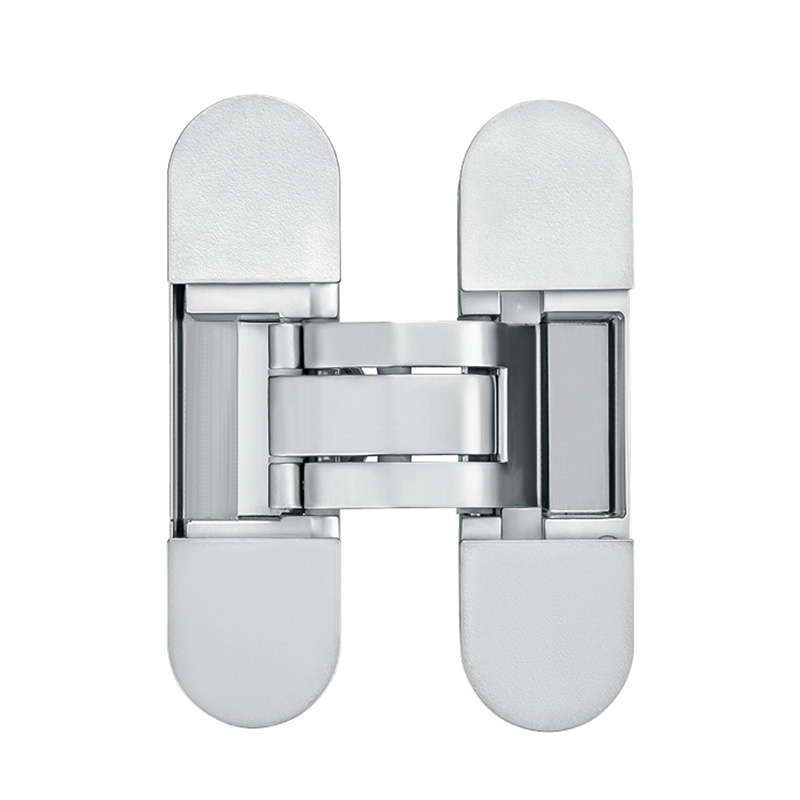

Our concealed fire door hinges combines design, performance, and security, all in one product. They help ensure that any building with such hinges protects its inhabitants and structure in case of emergencies and cuts down on threats costs risk as well.
Using our Concealed Fire Door Hinges, doors are fitted with a 3D Adjustable feature which optimally pre-positions the hinge at doors in need of the fire doors .What that guarantees is smooth operation, closing, and latching of the doors anytime, even when there is a fire. It is also possible to control their fit during installation and service because of the 3D Adjustment feature.
You can also contact us for other quantities as we are the distributors for some hinges of this quality. Pricing is reasonable with bulk buys available to make it easy for you to cover large areas of your facility with quality fire door solutions. Fire rated hinges made to international quality requirements that endure hot environments are used in our products.

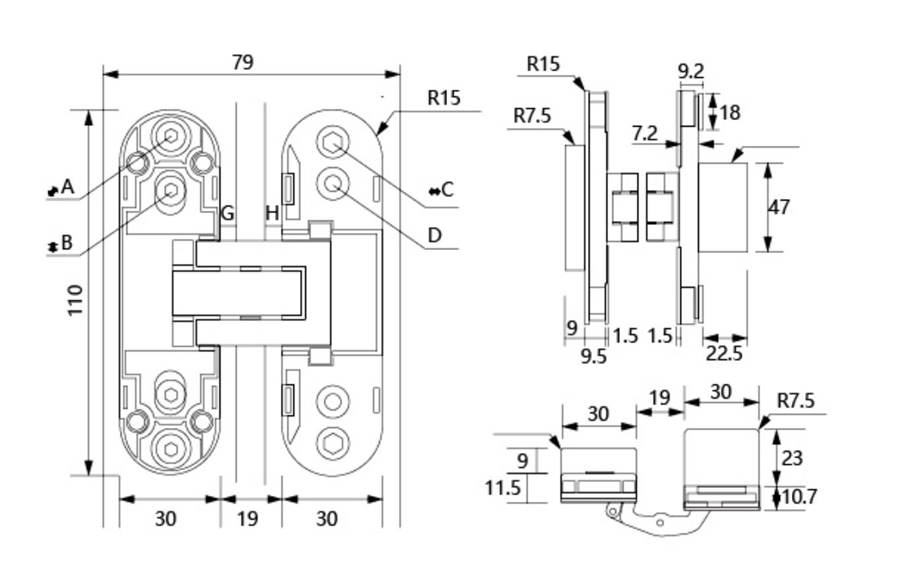

| Item | Parameter |
| Model Number | DSCH009 |
| Size | 110*30mm |
| Material | Zinc Alloy |
Type | 3D Adjustable Concealed Hinge |
| Max. door weight with 2 hinges | 60kg |
| Min. door thickness | 36mm |
| Max. door width | 850mm |
| Maximum opening angle | 180° |
| Features | Can be realized up and down adjustment士2.0mm. left and right the adjustment + 1.5mm, before and after the adjustment + 1.0mm,easy to install and use |
| Cover | Plastic and hidden screws |
| Color | Matt Black, Gold, Anti Brass, SS |
Delivering Stylish Fire Safety through Concealed Fire Door Hinges
Concealed Fire Door Hinges are the combination of innovation in fire safety and concealed sleek design. Ideally suited for modern buildings, these fire door hinges enable the doors to withstand and withstand considerable amounts of pressure as a means of preventing the spread of fire. The concealed style also looks excellent which makes it very suitable for premium residential and commercial spaces.
3D Adjustability for Easy Operations and Performance
Use 3D Adjustable Concealed Fire Door Hinges to achieve perfect door adjustability. These hinges enable the adjustment of the clip in three dimensions which guarantees the smooth opening and closing of your doors. The 3D adjustability enables the easy installation and maintenance which in turn saves time and reduces the chances of the door shifting.
Long Lasting with Reliable Materials
Our fire door hinges are made of sturdy and high temperature resistant materials. This ensures that the door hinges can survive the heat from the fire and continue making your doors functional and intact. This durability also makes them economically viable solution in terms of fire safety, reducing the rate at which replacements are required over many years to come.
Smooth Installation and Upkeep
You can rapidly install our Concealed Fire Door Hinges because they are user-friendly and can be adjusted in three dimensions. Moreover, our hinges also include complete fitting instructions which makes them easier to be fitted by professionals or non-professionals as well. Furthermore, only a modest amount of upkeep is needed thus enabling you to carry out other important activities in your organization.
Competent with International Guidelines
Safety is critical and compliance is also one of the factors we take seriously. We stand by every claim of the quality of our Concealed Fire Door Hinges as they fully comply with or even exceed the various international fire safety regulations. Let our hinges give you an assurance of the safety of your occupants and that your property is compliant with all the necessary regulatory bodies.
Commercial Buildings
Our Concealed Fire Door Hinges are suitable for commercial buildings, offices, hotels and retail shops. Our door hinges are fully embedded into the door frame enhancing its beauty and maintaining professionalism at all times. These hinges also make sure that fire doors are closed during a fire making sure that smoke and flames are reduced.
Industrial Facilities
In factories and industrial places, our fire door hinges prove to be the best due to the generous presence of machinery and equipment. Our door hinges are made to bear the daily rush without compromising safety. The concealment allows a smooth operation of the door without interfering with the machines.
Educational Institutions
Colleges, schools and every other learning institution top the list of priorities when it comes to their students and staff. Our Concealed Fire Door Hinges can be described as fire safety measures that remain hidden yet effective. They only require minimal installation and maintenance which allows educational institutions to abide by fire safety regulations with ease.
Healthcare Facilities
A further aspect in hospitals and clinics is, fire doors must endure the persistent wear and tear which happens around emergencies. Our hinges endure high frequency since they have been designed for that purpose, even in emergency situations such as fire doors closing facilitated during a panic. Seamless also enhances the environment since there is less typically visible clutter.
Residential Buildings
For fire doors, our Concealed Fire Door Hinges offer a combination of safety and elegance. They are appropriate for apartments as well as private houses, thus giving patrons a reliable evacuation route in case of firefighters. The operating hinges were sufficiently made to be usable by the residents during an emergency.
The concealed fire door hinges’ core structure is precision engineered from high-grade stainless steel and galvanized steel as base materials which are highly ductile and formable under design without losing their corrosion resistance characteristics. This assures the daily demands of usage on the hinges and their performance under extreme conditions like during a fire when the buidling material fails due to high temperatures.
Our hinges are all manufactured and designed so as to comply with the fire requirements of UL (Underwriters Laboratories) and BSI (British Standard Association) such bodies’ standards. With enhanced features that meet or exceeds compliance include fire safety protection, as well as smoke leakage and extremes of temperature beam test durability.
Yes, our hinges are suitable for many types of fire doors which include wooden fire doors, steel fire doors and composite fire doors. To thank our customization of thickness and bush length managers, we easily meet any fire door application’s specifications.
You should not encounter problems finding the necessary items as the hinges we provide are accompanied by instructions and mounting hardware. There is little upkeep required as it is anticipated that the hinges would be examined regularly. In the event of any problems, our knowledgeable customer service representatives are on hand to assist and support you with other relevant concerns.
As many of our hinge models can be fitted on existing fire doors if the door and frame outline suit them. The technical department could evaluate the possibility of retrofitting and advise on what changes may be required. Such an option may be advantageous because it does not involve changing the door, and buildings can enhance their fire safety and security measures without causing much disruption.
